Class A vs. Class AB Amplifiers: A Plain-Language FAQ for the Serious New Listener

Everything the measurements say, what blind tests actually reveal, and why the engineering decisions baked into Accustic Arts amplifiers matter for the music you care about.

Every serious conversation about high-end amplifiers eventually arrives at the same crossroads: Class A, Class AB, or something else entirely. For listeners new to the world of serious audio, these terms carry a weight that often outpaces the evidence behind them.

Class A is spoken of in reverent tones. Class AB is called a compromise, which it is, in the way that a well-tempered piano is a compromise. Technically imperfect. Musically near-perfect.

What follows is a structured FAQ built on measurements, psychoacoustic research, and firsthand engineering testimony with a clear focus on what it means for listeners considering Accustic Arts amplifiers, designed and handmade in Lauffen am Neckar, Germany, and available in the United States exclusively through On A Higher Note.

Class A vs. Class AB Amplifiers – What is the real difference?

A Class A amplifier keeps its output transistors conducting for the full 360 degrees of every audio waveform. Nothing ever switches off.

The advantage is the complete elimination of crossover distortion, which is the small glitch that can appear at the zero-crossing point where one transistor hands off to another. The cost is relentless though, as a 50-watt Class A design may draw 200 watts or more from the wall at idle, converting most of that energy directly into heat.

Touch the chassis of a well-regarded Class A amplifier after an hour of listening and it will be warm enough to concern you.

Class AB keeps both transistors conducting through a small, deliberately managed overlap zone at the critical transition.

When that overlap is correctly biased and carefully maintained by a high-quality power supply, crossover distortion becomes vanishingly small, measurable in some designs below 0.001%, while efficiency rises dramatically. Most serious high-end solid-state amplifiers, including every model in the Accustic Arts range, operate in Class AB.

Designer Nelson Pass of Pass Laboratories, one of the amplifier world’s most respected voices, has acknowledged that the fundamental trade-off of Class A is real: relentless power draw, a heavy chassis, and a room that runs warm. Class AB, executed without compromise, recovers nearly all of the sonic virtues while remaining a livable proposition in a real listening room.

Can I actually hear the difference between amplifier classes in a blind test?

This is the question the industry does not advertise loudly. Controlled ABX blind listening tests where neither the listener nor the test administrator can see which amplifier is playing, and levels are matched within a tenth of a decibel consistently show that well-designed amplifiers across classes are far harder to distinguish than audiophile mythology suggests.

In one structured test involving 24 listeners, both trained and casual comparing Class A vs. Class AB Amplifiers vs modern Class D amplifiers through an ABX switcher, only 13 correctly identified the amplifier class more often than chance would predict. Statisticians call that result a coin toss. The confidence interval ran from 34% to 73%.

This does not mean all amplifiers sound the same. It means that topology label alone, Class A, or Class AB, is not a reliable predictor of audible character.

What determines what you hear is the quality of execution: the power supply’s reserve capacity, the selection and matching of output devices, the circuit topology, and the precision of every solder joint. An excellently designed Class AB amplifier will consistently outperform a mediocre Class A design in both measurement and in the listening room.

What does THD actually tell me, and how low is low enough?

Total Harmonic Distortion (THD) measures how much the amplifier alters the original signal by introducing frequencies that were not present in the source. For a well-executed Class AB amplifier, THD at 1 kHz typically falls between 0.001% and 0.05%, depending on design quality and measurement conditions.

The Accustic Arts AMP V, to take the clearest example from the range, is specified at THD+N of 0.002% at 4 ohms at 10 watts, a figure that places it in the same territory as the finest amplifiers built today.  But the number alone tells only part of the story.

Psychoacoustic research has shown that below roughly 0.1%, what matters more than the magnitude of distortion is its spectral character.  Specifically, which harmonics dominate and at what levels? Low-order even harmonics (second, fourth) are far less audible than higher-order odd harmonics even at equivalent measured levels. Fast Fourier Transform (FFT) analysis, which maps the full harmonic spectrum rather than collapsing it to a single percentage, reveals far more about an amplifier’s true character than its headline THD figure alone.

Class A vs Class AB Amplifiers: Accustic Arts Amplification Provanace

“The Accustic Arts power amplifier is undoubtedly a dream amplifier, almost surreal. In short: world class.” — German audio press, on the AMP series

Why do Accustic Arts amplifiers use a current mirror circuit instead of a conventional voltage driver?

In a conventional MOSFET power amplifier, a voltage amplifier stage drives the output transistors. Sebastian Ruhland, Accustic Arts’ lead designer, chose instead to use a current mirror, a circuit configuration in which the same current flowing through one transistor is precisely replicated in another, keeping output current constant regardless of load conditions.

The practical consequence is significant. Because the MOSFET output stage is current-driven rather than voltage-driven, the circuit does not require the MOSFET driver integrated circuits that conventional designs rely on. Those ICs add noise and introduce distortion at a point in the signal path where distortion is particularly difficult to correct.

Ruhland has noted publicly that he is aware of very few other manufacturers who implement the circuit this way. The result is measurable in the noise floors achieved across the Accustic Arts line and audible as a quality that reviewers consistently describe as a background blackness from which music emerges with unusual clarity.

What is Accustic Arts‘ Damping Factor Linearization, and why does it matter for real-world listening?

Damping factor describes how precisely an amplifier can control a loudspeaker’s driver after a transient signal, specifically, how quickly it can arrest the woofer’s motion when the music calls for silence or a sharp dynamic shift. Conventional amplifiers measure damping factor at a single test frequency (typically 1 kHz), but the real-world figure varies considerably across the frequency band.

Accustic Arts’ proprietary Damping Factor Linearization, switchable on all models from the AMP I through the AMP VI and the Mono series, maintains consistent speaker control across the full frequency range. The practical result, particularly audible on complex low-frequency material and at higher listening levels is that they have tighter and better-defined bass, reduced overhang on transients, and a composed presentation with demanding multi-driver loudspeakers that dip to low impedances in the bass region.

What is the Accustic Arts integrated amplifier lineup, and which one fits my situation?

Accustic Arts currently produces two integrated amplifiers for the US market, both in Class AB and both assembled by hand in Germany.

Model Output (8Ω / 4Ω / 2Ω) Key Features Best For
Power II ~150W / ~250W / — 12 bipolar output transistors, 550 VA transformer, 80,000 µF capacitance, integrated headphone amp, 3 RCA inputs The listener who wants a single, high-quality amplification stage with no digital complexity
Power III 230W / 370W / 510W 12 bipolar output transistors, 600 VA transformer, 80,000 µF, ESS Sabre DAC (DSD 512 / 32-bit/384 kHz), optional MM/MC phono, 5 digital inputs, headphone amp The listener who wants a complete source-to-speaker solution in one chassis, including vinyl and high-resolution digital

Both integrate the double-mono design principle of having left and right channels receive their own power supply windings and with both to include Accustic Arts’ protective circuitry monitoring for clipping, high-frequency oscillations, excessive DC offset, and temperature.

What stereo power amplifiers does Accustic Arts offer, and how do they scale?

The Accustic Arts stereo amplifier line is built around a consistent engineering philosophy — current-mirror MOSFET output stage, dual-mono construction, massive power supply reserves — scaled progressively across four models.

Model Output (8Ω / 4Ω / 2Ω) Output Devices Power Supply
AMP I 330W / — / rated to 2Ω 8 MOSFET per channel 600 VA, 80,000 µF

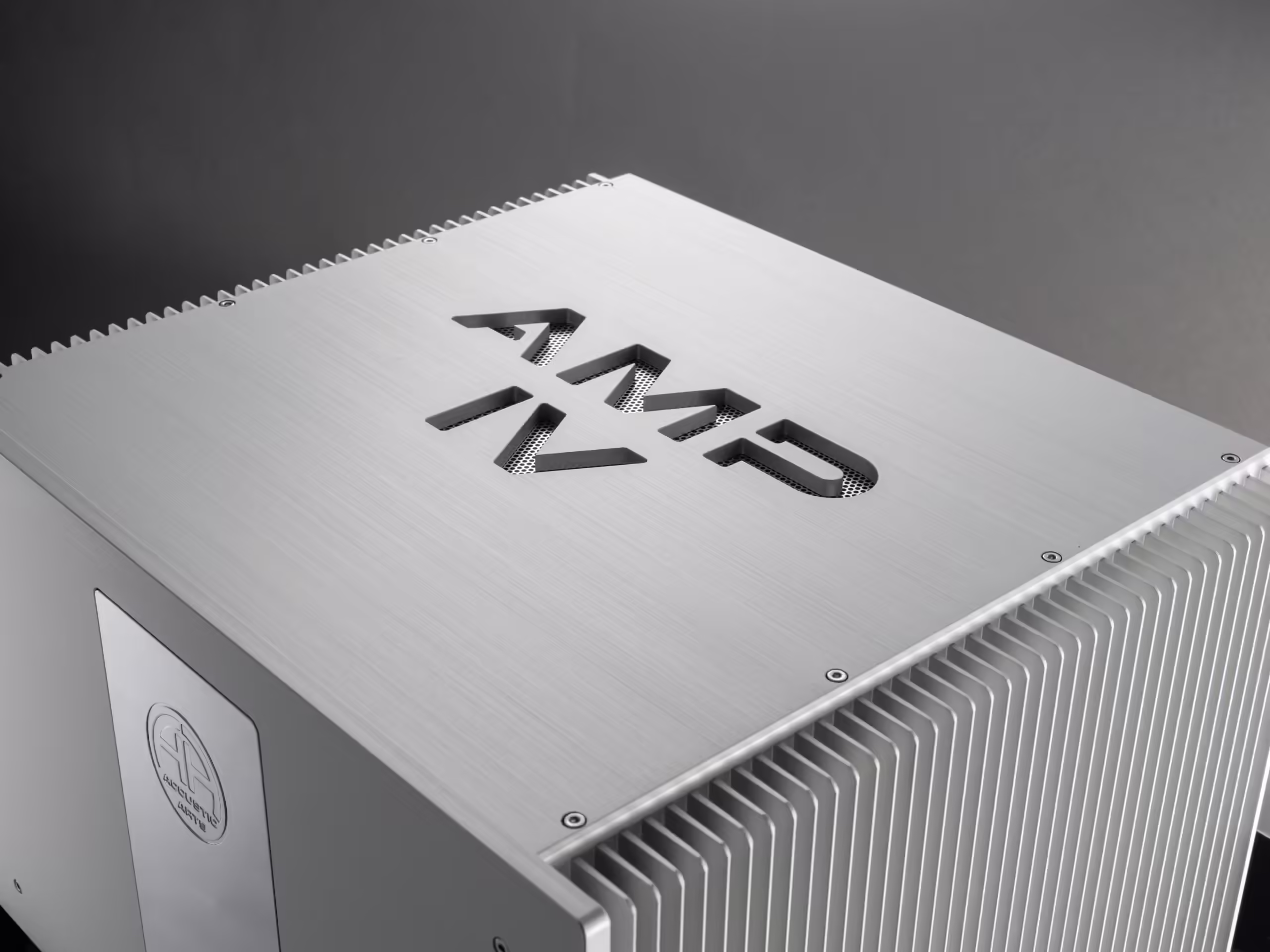

AMP IV (bestseller) ~300W / ~500W / — 20 MOSFET per channel Dual-mono, 80,000+ µF
AMP V 900W / 1,360W / 1,500W 40 MOSFET total Dual toroidal, 220,000 µF
AMP VI (statement) ~1,000W+ / scales down 40 MOSFET total Dual toroidal, 220,000+ µF

All four models are handmade in Lauffen am Neckar, use gold-plated WBT or equivalent speaker terminals, accept both XLR balanced and RCA unbalanced inputs, and include Damping Factor Linearization. The AMP V was reviewed in Stereophile, where it was called “a musical instrument that produces bright colors, huge images, and seat-shaking bass” and compared favorably to amplifiers costing considerably more.

What monoblock amplifiers does Accustic Arts offer, and who needs them?

Accustic Arts produces two monoblock amplifiers, the Mono IV and the Mono VI, for listeners who want dedicated, single-channel amplification for each loudspeaker. The practical advantage of monoblock amplification is complete channel isolation: each chassis has its own power supply, its own output transistors, and its own thermal environment. Crosstalk between channels, a measurable artifact in stereo amplifiers however well-designed, is eliminated by definition.

The Mono IV uses 20 selected MOSFET output transistors per chassis and a dedicated 1,200 VA toroidal transformer. The Mono VI scales further in both output and power supply reserves. Both models share the current-mirror topology, Damping Factor Linearization, and the hand-soldered, matched-component construction standard of the full Accustic Arts line. The Stereophile review of the Mono II (a predecessor model) described the amplifiers as capable of driving even the most demanding loudspeaker loads with authority, noting rated output of 300 watts into 8 ohms from each chassis at the time of that review.

How much heat do Accustic Arts amplifiers produce in a real listening room?

Because Accustic Arts amplifiers operate in Class AB rather than Class A, they run substantially cooler than Class A designs of equivalent or even lower power output. While the Arrhenius Rule that is familiar to engineers and reliability specialists states that every 10°C rise in internal operating temperature roughly halves the projected lifespan of electrolytic capacitors and other heat-sensitive components, we believe that the rate of degradation varies based on specific materials and failure mechanisms. For semiconductor components, this rule is somewhat exaggerated, but for electrolytic capacitors, it definitely applies.

It is a working belief on Accustic Arts’ part that no component should exceed 50°C and Accustic Arts’ holds  is that 40°C is normal.

A Class A amplifier idling at internal temperatures of 80–100°C is accelerating its own component aging continuously, even during silence. A Class AB design running at 40–50°C internal is not.

Accustic Arts addresses thermal management through generously dimensioned heat sinks integrated into the chassis walls, combined with active monitoring via the protection circuit. In normal use, the amplifiers become warm to the touch during extended sessions but do not heat the room or require additional ventilation beyond the clearances specified in the manual. This is not a trivial point for long-term ownership: a component running cool is a component that should still be performing the same way a decade from now.

What loudspeakers do Accustic Arts amplifiers work best with?

The current-mirror MOSFET output stage, combined with massive power supply reserves and Damping Factor Linearization, makes Accustic Arts amplifiers particularly well-suited to loudspeakers that present demanding impedance loads. The AMP I is specified to drive loads as low as 2 ohms. The AMP V and AMP VI deliver increasing power as impedance drops, a characteristic of the most capable high-current designs. In the Stereophile review of the AMP V, the amplifier was partnered with Wilson Audio Alexia 2 loudspeakers (4 ohm nominal) and compared against D’Agostino Progression M550 monoblocks; both were described as capable of sustaining the reviewer happily for the rest of his listening life.

That said, the low noise floor achieved by the current-mirror circuit also makes the Accustic Arts amplifiers excellent partners for high-sensitivity speakers, where background noise is more easily audible. The amplifiers are not voiced for warmth, darkness, or analytical brightness. The design objective at Accustic Arts is expressed in the company’s name, which stands for ACCUrate acouSTIC ARTS, equates to accuracy, as in music as it was recorded, reproduced without editorializing.

What does ‘Handmade in Germany’ actually mean when applied to an Accustic Arts amplifier?

Accustic Arts Audio GmbH has been based in Lauffen am Neckar, Baden-Württemberg since its founding in 1997. The facility is located in the same regional industrial tradition as Mercedes-Benz and Porsche, companies whose reputations rest on engineering precision applied without compromise.

At Accustic Arts, every amplifier is assembled by hand. PCB traces on reference models are hand-soldered. Output transistors are individually selected and measured for matching before installation. Power supply capacitors are sourced from established German manufacturers.  The Mono II review in Stereophile specifically noted capacitors by Fischer & Tausche. Individual product testing before dispatch can take up to two weeks per unit. The toroidal power transformers in the reference and statement models are designed by Sebastian Ruhland himself and manufactured at a facility approximately 80 miles from the Lauffen factory. Current owner Hans-Joachim Voss, who acquired the company in 2016, has described the quality standard simply: the product test can last up to two weeks before a component is deemed good enough to leave.

Who is the ideal listener for an Accustic Arts amplifier?

Accustic Arts amplifiers are designed for listeners who have moved past the excitement of short-term component impressions and want a long-term musical foundation. In this Class A vs. Class AB Amplifiers debate, Accustic Arts amplifiers keenly suit the person who listens across a wide range of music, not just audiophile-approved acoustic recordings, but rock, orchestral, jazz, and everything between, and those who wants the amplifier to serve all of it equally without adding its own signature. Owner Jochen Voss is a rock enthusiast. Designer Sebastian Ruhland voiced the AMP V partly against Holst’s The Planets and Barber. The amplifiers are not designed for a narrow slice of the music spectrum.

They are also well-suited to the listener who owns or aspires to own loudspeakers at a similar level of ambition, speakers that will genuinely benefit from high current delivery, stable control across impedance swings, and a clean, dark noise floor. And they reward the listener who expects their equipment to last, who views a well-made German amplifier not as a temporary purchase but as a long-term relationship with a musical instrument.

Accustic Arts amplifiers are available in the United States exclusively through On A Higher Note.
