- Airbearing turntable
- Air pump
- Power supply
- Linear tracking air bearing Magne tone arm
- Output for an airbearing tonearm.
- Connector: RCA/XLR, DIN
- Includes 1 record clamp, 1 armboard
Dealer Ex Demo - SOLD
Ex-Demo Bergmann Audio Magne Turntable and Magne Linear Tracking Airbearing Arm Available
As N. American dealers refresh their Bergmann demonstration systems, it presents a unique opportunity to own an ex-dealer demo Bergmann Audio Magne airbearing turntable system with a Magne linear tracking airbearing tonearm a great price. Magne system is offered in White Velvet Anthracite, Black Velvet Black and Black Velvet Silver in excellent condition.
Magne turntable system is extremely simple to adjust and operate. The airsupply is equiped with condence and dustfilters, and reservoirs to obtain dry, clean and smooth airflow. Further more the air supply is so noiseless, that it can be placed in the listening room.
Call or Contact us with our Sales Form below for more information.
Magne turntables include:
Magne means “strength”. In Nordic mythology Magne is the super baby, son of Thor, the God of Thunder, and when he is three days old he is so strong that he can lift a dead giant away from his father, who is pinned underneath. Magne is one of the few gods, who survive Ragnerok, the nordic armageddon, and rebuilds the new world. The platter – centred by a spindel – floats on an air film.

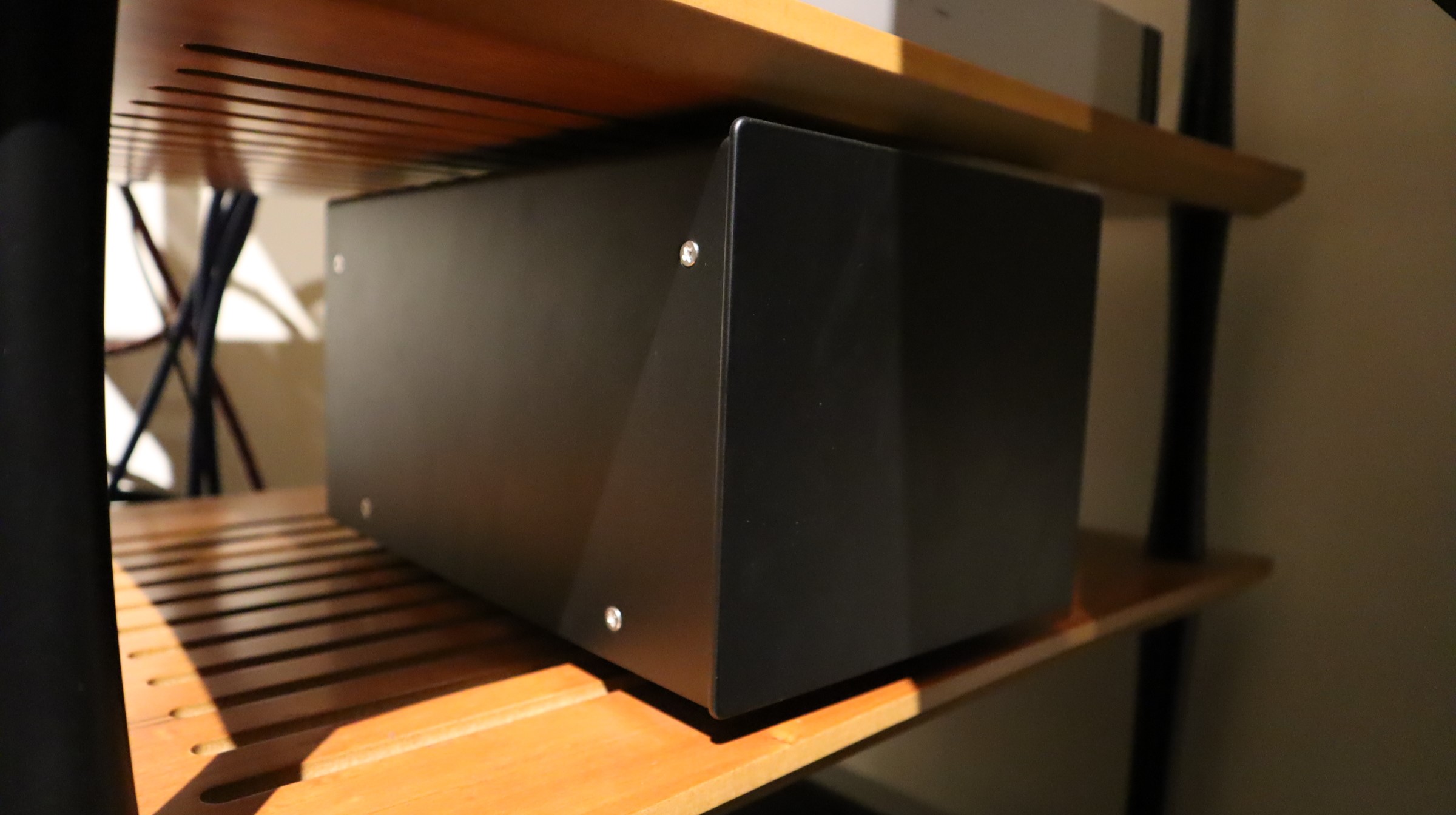

Airsupply
The air pump must deliver an even, clean and dry air flow. The impulses from the pump are absorbed in an encapsulated reservoir. This results in an even airflow to the air bearing and tonearm. The air supply is mounted with a filter, which prevents dust particles in entering the system. This filter is replaceable when necessary. The pump is an oil free, long life unit, which do not require much maintenance.
Magne Linear tracking airbearing tonearm
In the design of the tonearm, we stay to our idea of simplicity: As few parts and assemblies as possible, to avoid resonances. The armtube is traditional for Bergmann tonearms- well considered construction in few parts, made as a double tube construction, with damping in between the tubes. All parts are assembled by 2 component epoxy – simple and vibration free design to secure as pure and coherent reproduction.The tonearm wire is- as usual in Bergmann tonearms- in one lenght from cartridge clips to the connector. These minimalistic design features makes an optimum signal transmission, from the stylus tip to the phono stage, and leads to an unmatched transparent and spaciousness sound stage with the right timbre and musical informations. Counterweight is decoupled from the arm- again to avoid any resonances. In addition, the set-up of the tangential tonearm is entirely uncomplicated, and probably the easiest tonearm to set up.
Magne ST is a linear tracking airbearing tonearm with air supply. Offered in black/silver.
System includes power supply, and a RCA/XLR/DIN connector.
Available Finish for Turntable
Magne turntable comes in a standard black velvet silver finish. Also available in black velvet black , white velvet silver, and white velvet anthracite for a nominal additional charge.
Optional Additional Parts and Finish offered
- Counter Weight: with different weight (light, medium, heavy) and finish (copper, bronze, stainless steel)
- Dust cover: Acrylic Dustcover is available for the Magne Turntable.
Technical specifications
Turntable
Airbearing design.
Record flatten by a puck.
DC motor. Beltdriven.
Plinth:
Solid high density composite material.
Platter/Bearing:
Aluminium platter/Polycarbonate mat, floats on air.
Centred by steel spindel/hardweared low friction polymer bearing.
Platter weight:
5.5 kg.
Subplatter:
Aluminium
Weight: 1.5kg.
Dimensions:
440 x 495 x 165 (D x W x H)
Total weight:
18,5 kg.
Tonearm
Linear tracking airbearing tonearm.
Aluminium/carbon.
Armtube damped inside.
Counter weight decoupled from armtube.
Adjustments: VTA, overhang, leveling.
Wire:
High quality copper litz.
Clips:
Gold plated copper.
Connectors:
RCA, XLR, DIN.
Effective mass: 11g.
Powersupply
Seperate plug-in power supply.
33 & 45 rpm. Speed finetuning.
Airsupply
Silent, clean, dry and smooth airflow. Replaceable filter.
Dimensions:
330 x 150 x 160 (D x W x H)
No product documentation found.
Frequently Asked Questions
Be the first to review “Ex-Demo Bergmann Audio Magne Turntable and Magne Linear Tracking Airbearing Arm Available”
“Schallplatten tangential abzutasten ist mitunter ein schwieriges Unterfangen. Der dänische Hersteller Bergmann zeigt, dass es so einfach wie elegant geht”
Dr. Uwe Heckers, Fidelity, 2019 <learn more>
“Oscar Wilde is also quoted as saying ‘I have the simplest tastes. I am always satisfied with the best.’ I could not agree more. Bergmann Audio designs and manufactures world class turntables. And now, through patience, passion and kindness, their Magne is the new Audiophilia reference.”
Anthony Kershaw, Audiophilia, May 2019 <learn more>
“If you are among those who get heartbeat when you meet aesthetically high quality design- furniture, art, or anything else, you’ll need blood pressure medicine: Bergmann Magne is among the finest. In the audiofile world it is the Porsche 911.”
Knut Vadseth, Fidelity, 2017 <learn more>
“I love Danish Design and for this reason alone, I would love to have the Magne in my listening room permanently. A second reason to refuse to return the Magne to its rightful owners has to do with its high level of built quality and finish. Both reasons make me enjoy this turntable just by looking at it. The third reason to choose this turntable has to do with the extremely thoughtful manner in which some techniques – especially the use of air bearings – are implemented. This has resulted in a complete absence of problems related to friction and the main reason why details, dynamics, ambiance, imaging and authentic tonality are reproduced without any vagueness or smearing.”
Jan De Jeu, HiFi.nl, 2017 <learn more>
